Many teams struggle with the same symptoms: long wait times between steps, excessive handoffs, rework that eats up capacity, and unclear ownership when something goes wrong. Queues build up in one area while another sits idle, and improvement efforts stay disconnected because nobody has a shared picture of the whole process.
This article walks through what a value stream mapping workshop is for, how to prepare, who should attend, how to run current-state and future-state mapping sessions, and how to turn the findings into improvements that actually stick.
Key Takeaways
- A VSM workshop is a collaborative improvement session, not a diagramming exercise for its own sake
- Map what actually happens, using real operational data to ground every step
- Prioritize three outputs: a shared current-state view, a realistic future state, and an owned action plan
- Lock in results with follow-up measurement and visible leadership support after the workshop
What Is a Value Stream Mapping Workshop and Why Does It Matter?
Value stream mapping is a Lean method for visualizing the end-to-end flow of materials, information, decisions, and work needed to deliver a product or service to a customer. The Lean Enterprise Institute defines it as a tool for capturing every step in that flow, from the customer's request through to delivery, so teams can see where value is created and where it's lost.
A workshop goes further than a standard process map. Instead of just listing steps, participants examine:
- Customer value and where it actually gets created
- Flow, delays, and queue buildup between steps
- Handoffs and information flow across functional boundaries
- Non-value-added activity that's built into "the way we've always done it"
That cross-functional lens is the point. A billing department mapping its own process in isolation will miss the upstream sales handoff that creates half its rework. The workshop format forces those connections into view.
Where the Value Shows Up Differently by Industry
The same mapping approach surfaces different problems by setting:
- Manufacturing: Overproduction and uneven workloads across the line
- Healthcare: Waiting between steps — a mixed-methods study of four acute hospitals found it was the largest source of waste from the patient's perspective, not any single clinical delay
- Construction, food and beverage, and public sector: Approvals stack up, information doesn't travel with the work, and nobody owns the gaps between departments
A workshop typically produces:
- A current-state map showing how the process really operates
- Documented waste and bottleneck observations
- A future-state map showing the target flow
- Prioritized countermeasures with accountable owners
- Measures for follow-up
A workshop is a strong fit when you see:
- Persistent lead-time problems
- Rising rework
- Poor visibility across departments
- Ongoing disagreement about where the process is actually failing
One condition matters more than any of these: leaders have to be willing to act on what the workshop finds. A map that sits in a folder changes nothing.
Preparing for a Value Stream Mapping Workshop
Preparation determines whether the workshop produces real insight or just a nicer-looking diagram of the same confusion.
Define the Workshop Objective and Scope
Pick one clearly bounded value stream. Order-to-delivery, patient intake-to-discharge, quote-to-cash, or request-to-service completion are all reasonable scopes. Trying to map an entire organization in one session guarantees a shallow result.
Before the session starts, define:
- The customer this value stream serves
- The start point and end point
- The business outcome the workshop needs to support
- The specific questions the team must answer
Set one expectation clearly upfront: the team documents the process as it operates today, workarounds and exceptions included. Designing the ideal process comes later, after the facts are on the table.
Assemble the Right Participants
The people in the room shape the quality of the map. Include:
- People who perform the work day to day
- People who receive or hand off work upstream and downstream
- Managers who own the process
- Someone who understands customer requirements
- A leader with authority to remove cross-functional barriers
Teams of roughly eight to twelve participants tend to work best: large enough to represent the full flow, small enough to hold a focused, honest discussion.
Pulling attendees from a single department produces an incomplete map and, worse, reinforces the exact silos the workshop is meant to expose.
Gather Data and Prepare the Facilitators

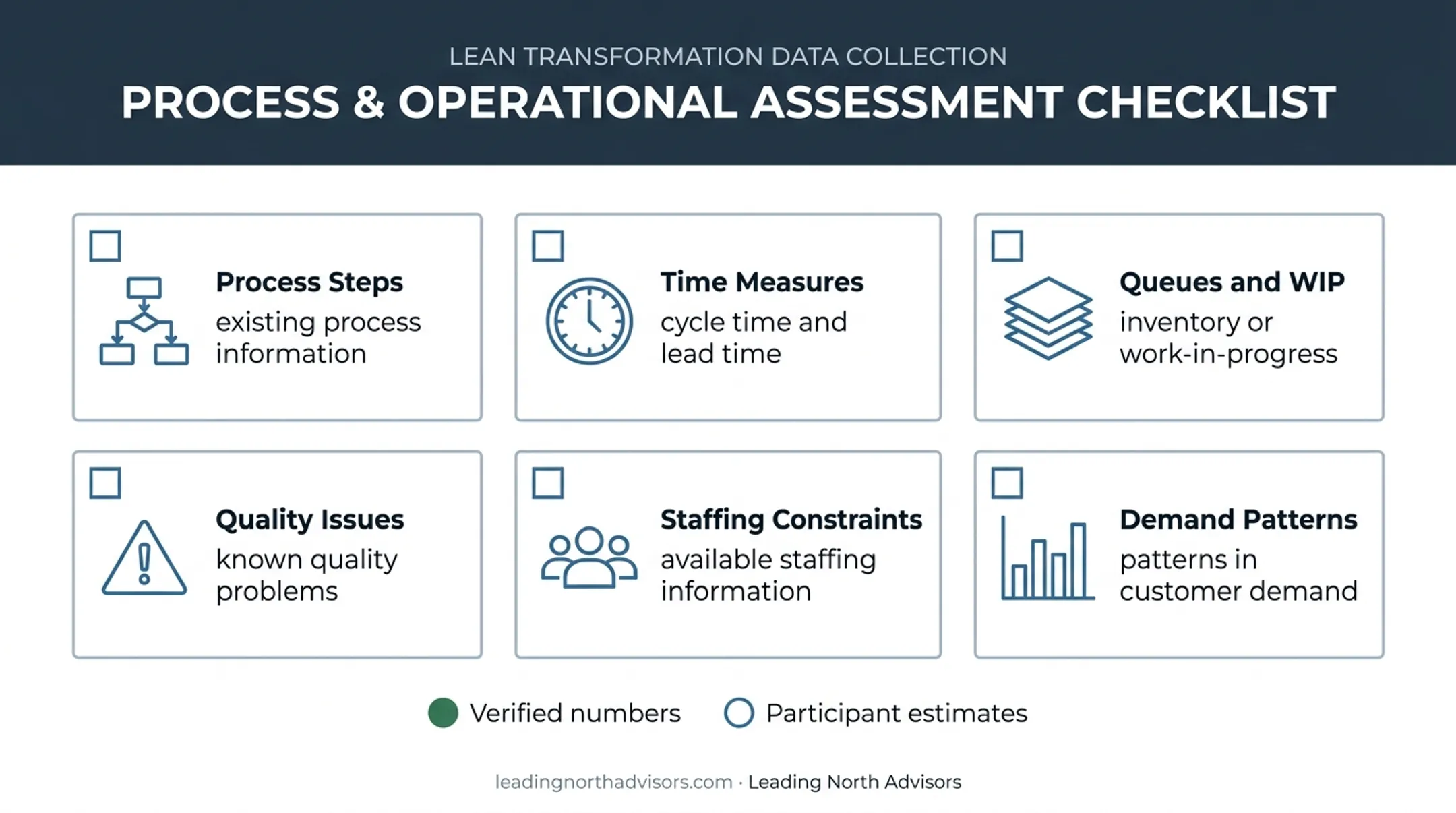

Collect whatever information already exists on process steps, cycle time, lead time, queues, inventory or work-in-progress, quality issues, staffing constraints, and demand patterns. Flag which numbers are verified and which are participant estimates. Both have value, but they shouldn't be treated the same.
Facilitators should prepare:
- A simple agenda and a mapping space, physical or digital
- Process symbols, sticky notes, markers, and a parking-lot list
- A method for recording decisions and open questions
Brief participants beforehand on purpose, terminology, and decision rights. Make it clear that candid discussion about workarounds and failure points is the goal, and set expectations for handling disagreement without assigning blame.
External facilitation helps in specific situations: when the process crosses sites or departments, when leaders disagree about the underlying problem, or when internal teams may not feel safe describing waste and workarounds to their own managers.
Leading North Advisors works with organizations in this position. Their practitioner-led Lean workshops and training keep client teams engaged at every step, rather than handing over a report to interpret alone.

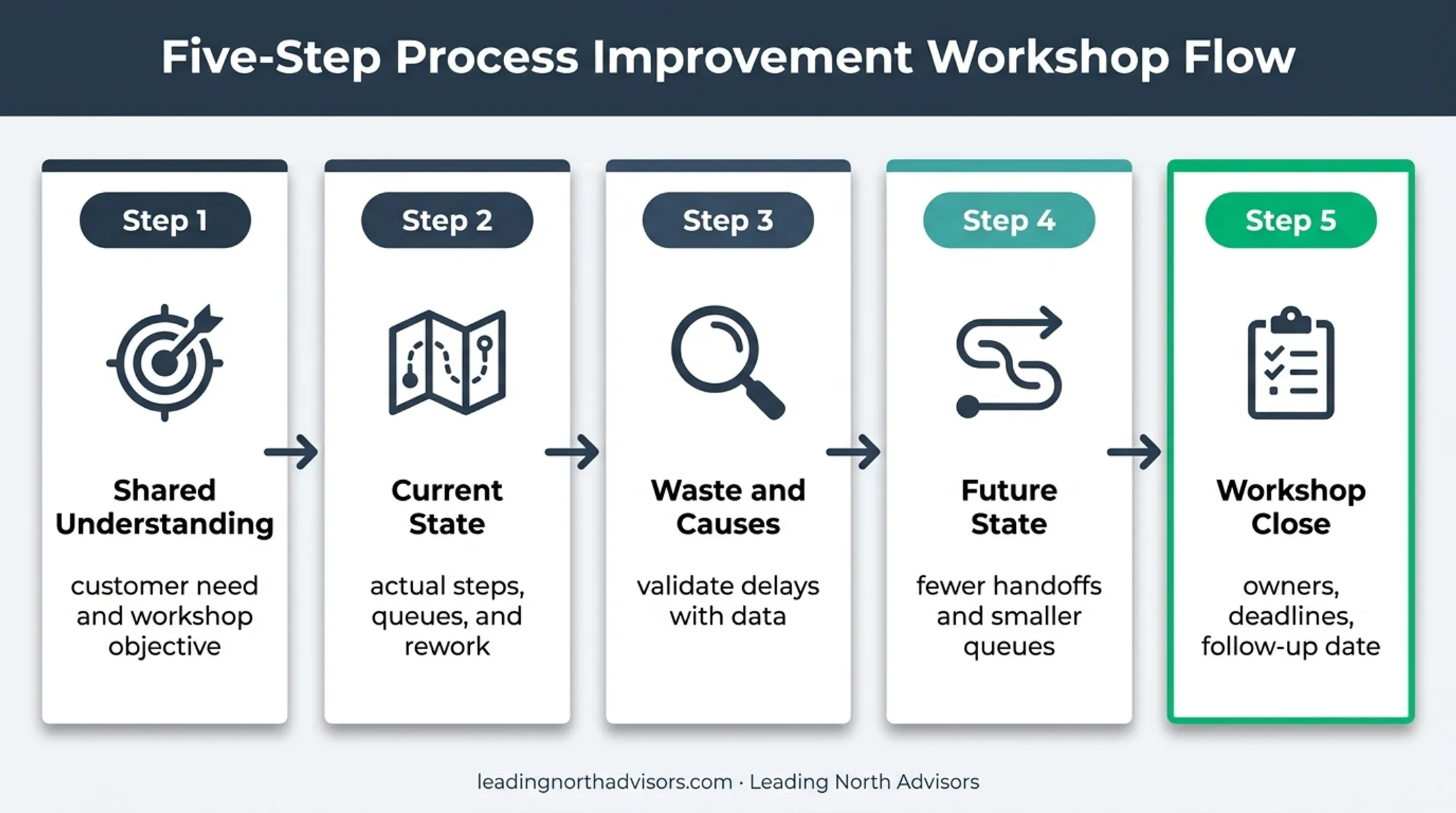

Running the Workshop: From Current State to Future State
This is where the workshop earns its keep. A well-run session moves through a logical sequence rather than jumping straight to solutions.
Establish a Shared Understanding
Start with the customer need and the workshop objective. Briefly define value-added work, non-value-added work, lead time, cycle time, queue time, and demand-related concepts like takt time where relevant.
Confirm scope and agree on a consistent level of detail early. That way the group doesn't spend an hour debating a minor step while a systemic three-day delay goes unaddressed.
Map the Current State
Walk the process from the agreed start point to the customer-facing endpoint. Capture:
- Actual steps, approvals, and decision points
- Information flows and the systems involved
- Queues, handoffs, and rework loops
- Processing time, waiting time, batch size, and work-in-progress
Ask the people who do the work to describe what actually happens, not the standard-work version. Interruptions, urgent requests, and workarounds all belong on the map. Flag any estimate for later validation rather than treating it as fact.
Identify Waste, Bottlenecks, and Root Causes
Lean methodology names seven categories of waste, commonly known as TIMWOOD: transport, inventory, motion, waiting, overproduction, overprocessing, and defects. These show up differently depending on the setting:
- Manufacturing: overproduction ahead of demand, excess inventory between stations
- Healthcare: waiting for test results, staff searching for supplies or forms
- Construction: rework from miscoordinated trades, motion from disorganized job sites
- Knowledge work: meetings that don't produce decisions, rework from unclear requirements
Look for queues, overloaded resources, repeated approvals, and points where work stalls or changes hands. Then separate symptoms from causes. Ask why the delay happens, and validate the answer with data, direct observation, or employee input rather than assumption alone.
Design the Future State
Define what improved flow looks like from the customer's perspective: fewer handoffs, smaller queues, right-first-time work, faster feedback where it matters. Build a future-state map that removes unnecessary steps while respecting safety, regulatory, staffing, and technology constraints.
Prioritize what's actually implementable. An idealized map nobody can execute is a wish list. Separate changes you can test quickly from those that need capital, policy shifts, or technology decisions.
Close the workshop by locking:
- Assumptions and unresolved questions
- Priorities and owners
- Decision deadlines
- Date of the first follow-up review
Turning Workshop Findings Into Sustained Improvement
A value stream map with no implementation plan is a wasted investment. The workshop is the starting point, not the finish line.
Convert the Map into an Implementation Plan
Translate future-state gaps into a short improvement backlog. Each item needs:
- A specific problem statement
- A proposed countermeasure
- An owner
- Dependencies and target timing
- Expected operational effect
Prioritize with simple, agreed criteria:
- Customer impact
- Delay reduction
- Risk
- Effort
- Alignment with strategic goals
A basic ranking beats an elaborate scoring model nobody will maintain. Use pilots, standard-work updates, visual management, or workload rebalancing only where they address a verified constraint—not just a visible one.
Measure Results Without Creating Harmful Incentives
Track a balanced set of measures across flow, quality, cost, customer experience, employee workload, and safety or compliance where relevant. Start small rather than with a long scorecard:
- Cycle time
- On-time delivery
- Defect rate
- One workforce or safety indicator
Speed alone misleads. A process can get faster and worse if quality slips. Pair every delay-reduction goal with a quality and stability measure so the team is not rewarded for cutting corners.
Compare results to an agreed baseline, not a vague "before and after" impression.

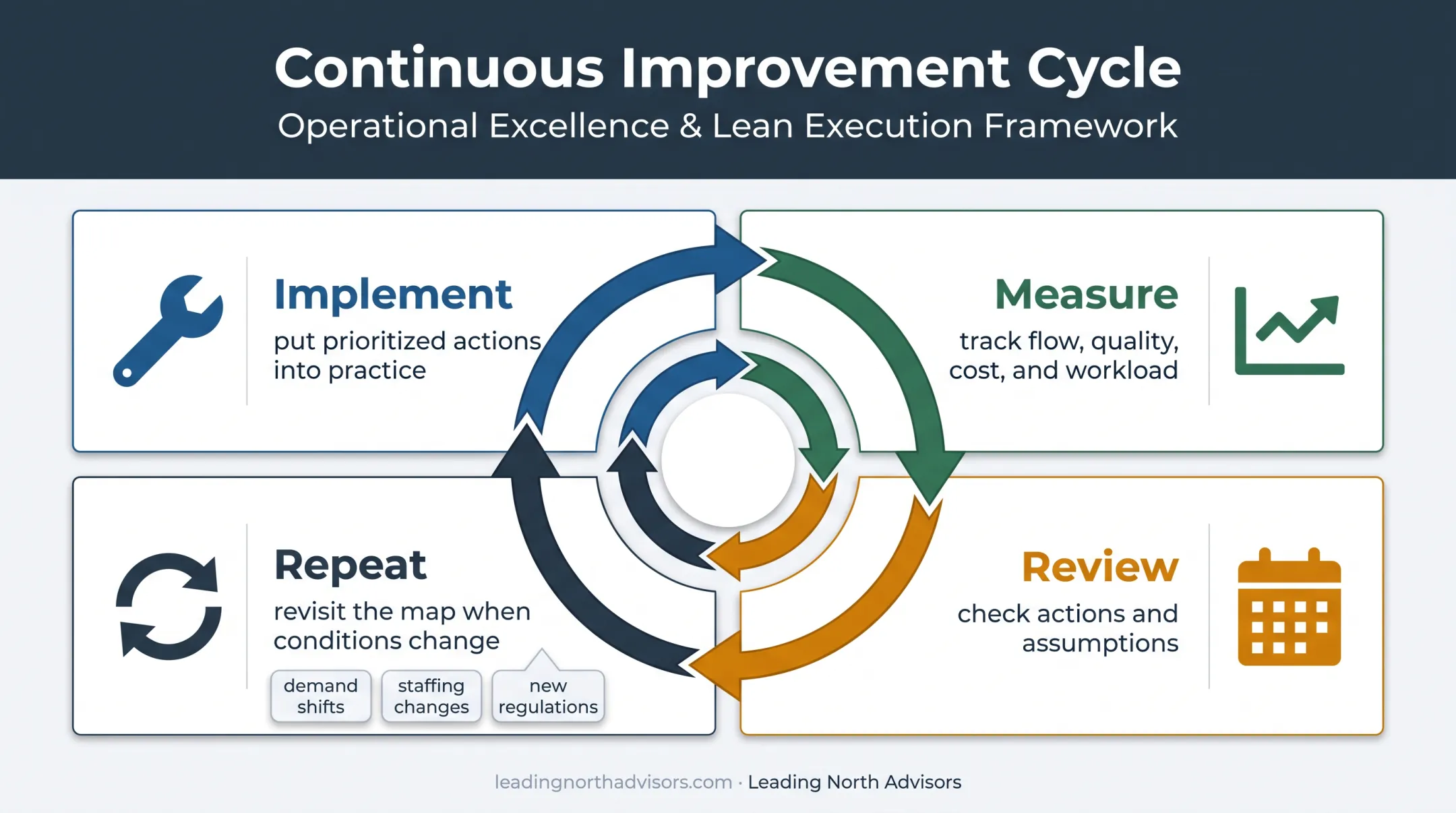

Review, Learn, and Repeat
Schedule follow-up reviews to check whether actions were implemented, assumptions held up, and new constraints appeared. Revisit the map when conditions change materially:
- Demand or product mix shifts
- Staffing changes
- New or updated regulations
Frontline employees usually see problems first. Their ownership is often what makes the fix stick, so treat value stream mapping as a continuous practice—not a one-time event.
Mapping software helps with remote participation, shared editing, documentation, and ongoing review. It cannot replace accurate observation, skilled facilitation, or a leader willing to act on what the data shows.
Frequently Asked Questions
Where can I find a value stream mapping workshop or training?
Organizations typically use internal Lean practitioners, professional training providers, or experienced Lean consultants. When evaluating options, check industry experience, facilitation skill, practical application, and whether support continues after the workshop ends.
What are the seven wastes in value stream mapping?
Transport, inventory, motion, waiting, overproduction, overprocessing, and defects. The workshop's job is to connect each of these to your organization's actual customers and processes, not just naming them.
What is value stream mapping software used for?
It supports digital map creation, collaboration, documentation, version control, data visualization, and follow-up tracking. Basic workshops can run just as effectively with physical boards, sticky notes, and markers.
Who should attend a value stream mapping workshop?
A cross-functional group of eight to twelve people. Include process performers, upstream and downstream partners, a customer representative where possible, relevant subject-matter experts, a decision-capable leader, and a skilled facilitator.
What should a value stream mapping workshop produce?
A current-state map, documented waste and constraints, a future-state design, prioritized actions with owners, follow-up measures, and a review cadence. The outputs should drive decisions, not sit in a folder as documentation.
