Introduction
Most departments look busy. Emails fly, meetings fill calendars, and dashboards show green. Yet customers still wait too long, inventory piles up, and rework quietly eats margin.
That disconnect happens because individual teams optimize their own piece of the puzzle. No one owns the whole journey from customer request to delivered value.
Value stream mapping is a Lean method built to close that gap—often guided through value stream consulting. It traces how work, materials, information, and decisions actually move across an organization, not how an org chart says they should move.
This article covers what value stream mapping is, why it matters, how to run the exercise, and how to turn a map into real operational improvement. We'll also cover common mistakes and what to look for in a consulting partner.
Key Takeaways
- A value stream is every activity required to deliver a product or service end-to-end to the customer.
- Mapping the current state exposes waste and constraints and guides future-state design.
- Cross-functional participation and reliable data (not assumptions) determine whether a map reflects reality.
- Leadership commitment to implementation—not the map itself—produces results.
What Is Value Stream Consulting and Mapping?
A value stream covers every step required to deliver an outcome to a customer, whether that's a manufactured part, a patient discharge, or a completed permit. Some of those steps add value the customer would pay for. Others are necessary but non-value-adding, such as regulatory documentation. The rest is waste: waiting, rework, unnecessary movement, or approvals that serve no one.
Value stream mapping (VSM) visualizes that entire flow—materials, information, people, decisions, and time—from the customer's request through delivery. Unlike a task-by-task flowchart, it is a system-level picture of how work moves.
VSM vs. Process Mapping
Process maps typically zoom in on a single workflow, like "how a purchase order gets approved." Value stream maps zoom out. They follow a product or service family across multiple functions to see how the whole system performs for the customer.
That distinction matters because local fixes rarely fix systemic delay. A team can shave 20% off one step and still miss the target if the next three steps sit idle waiting for handoffs.
What Value Stream Consulting Adds
Value stream consulting is the facilitated version of this work. It includes:
- Selecting the right value stream
- Gathering firsthand evidence
- Engaging the people who do the work
- Analyzing performance data
- Designing a future state
- Supporting implementation
Leading North Advisors approaches this as a Lean transformation partner with more than 30 years of Lean Enterprise Transformation expertise across manufacturing, healthcare, construction, and public-sector settings. Its change-management approach integrates client teams at every step rather than handing over a map and walking away.
Why Value Stream Mapping Matters
Lead time, cost, throughput, quality, and employee workload rarely improve when each department manages its own metrics in isolation. A value stream view exposes what departmental dashboards miss:
- Handoffs where work sits waiting for someone else to act
- Queues and batching that inflate lead time without adding value
- Rework loops caused by unclear upstream instructions
- Scheduling conflicts between departments chasing different priorities
- Local "improvements" that shift a bottleneck instead of removing it
The Cost of Invisible Waste

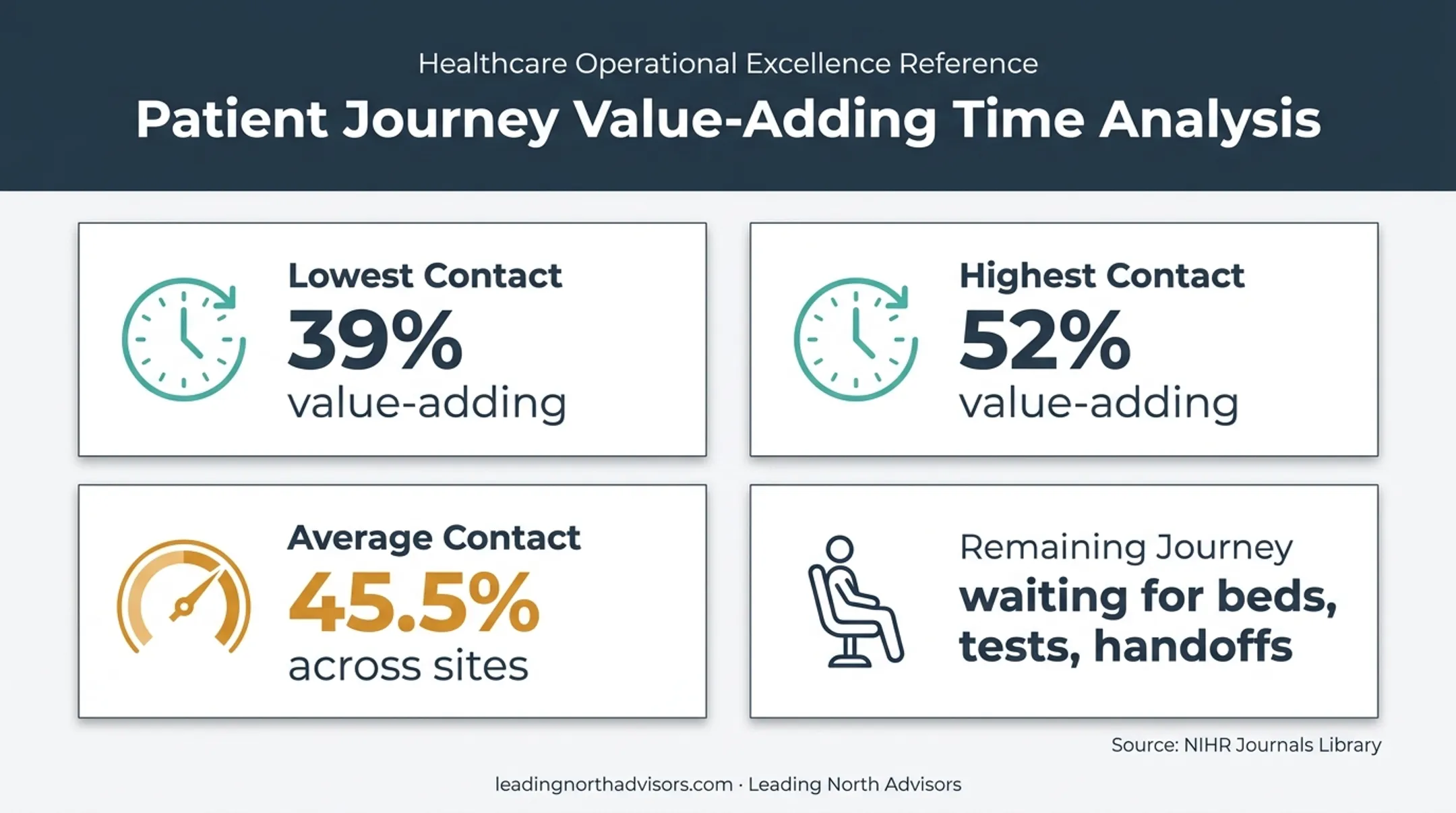

A four-hospital study of emergency care found that value-adding contact time made up only 39% to 52% of the patient journey, averaging 45.5% across sites. The rest was waiting: for beds, for test results, for the next handoff. The research is documented in the NIHR Journals Library.
Similar patterns show up across industries:
| Industry | Where flow typically breaks down |
|---|---|
| Manufacturing | Replenishment gaps, batch releases, changeover delays |
| Healthcare | Bed waits, discharge delays, handoff failures |
| Food & beverage | Ingredient delays cascading into production and shipping backlogs |
| Construction | Trade handoffs, rework, schedule conflicts |
| Public sector | Permit and benefits processing exceeding target timelines |
That public-sector pattern shows up in the data. A federal review found agencies missed a 270-day permit-processing deadline on roughly half of applications reviewed, and some agencies lacked reliable timing data for over 40% of cases.
Why the People Doing the Work Need to Be in the Room
A map built from conference-room assumptions misses reality. Mapping should include the frontline employees who do the work and the people who receive the output. Their firsthand knowledge:
- Improves map accuracy
- Builds ownership of the changes
- Helps improvements stick after the workshop ends
How to Conduct a Value Stream Mapping Exercise

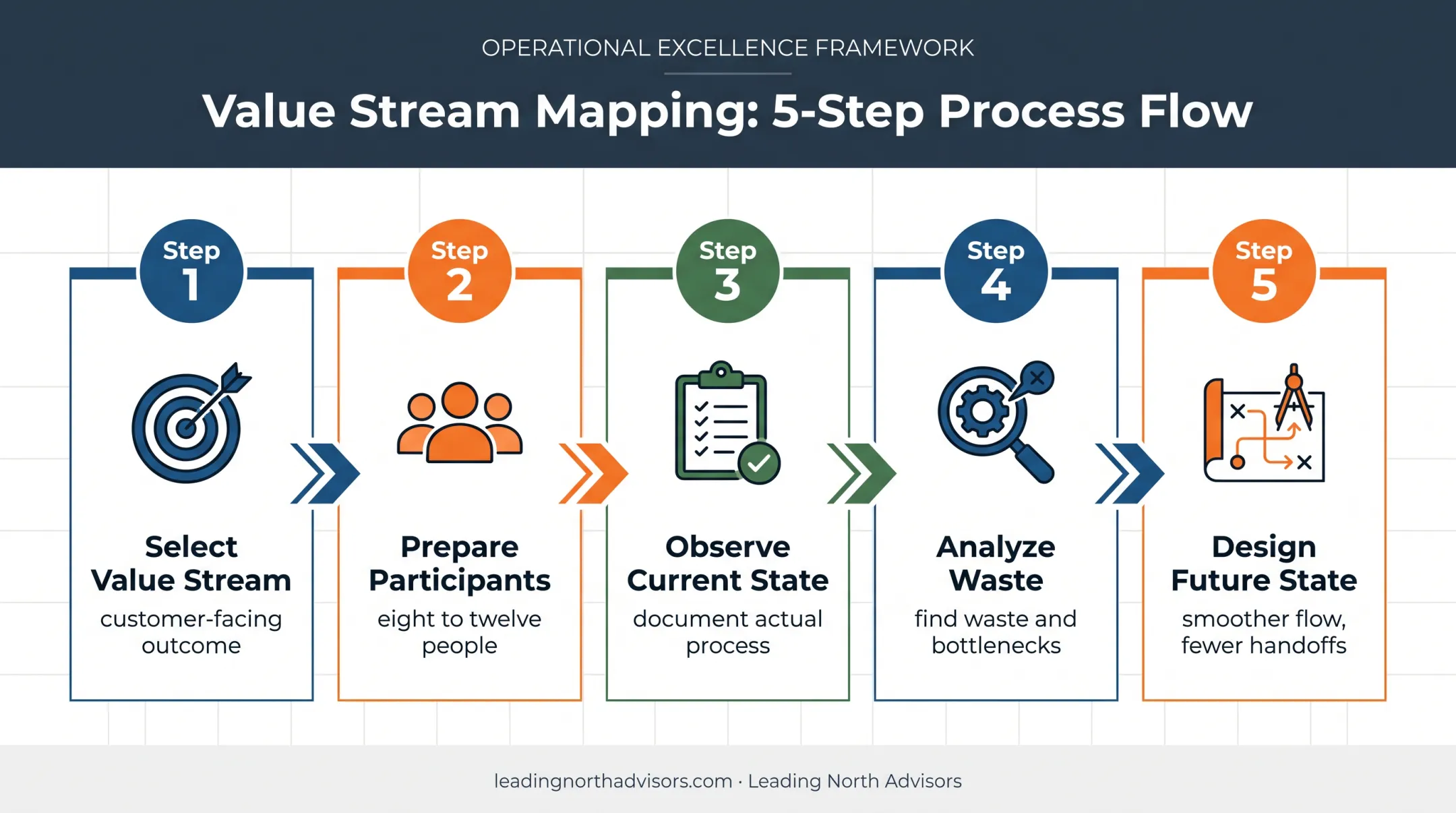

A useful map starts with scope discipline and ends with a clear improvement direction. Here's the sequence.
1. Select the Value Stream
Start with a customer-facing outcome, then narrow to a manageable product, service, case, or project family. Scope too broad and the map loses clarity. Scope too narrow and you miss the systemic issues driving delay.
2. Identify Participants and Prepare
Effective sessions typically include eight to twelve people:
- An executive sponsor with authority to act on findings
- A value stream owner
- Frontline employees who perform the work
- Support functions and, where relevant, customers or suppliers
Define the start and end point before the workshop, and pull available performance data in advance.
3. Observe the Current State
Walk the actual process. Document what you see, not what you assume:
- Demand, process time, and wait time at each step
- Work in process and batch sizes
- Uptime, defects, and staffing levels
- Handoffs and information signals between steps
Treat observed data and assumed data as separate categories. If a number wasn't verified at the source, label it as an estimate.
4. Analyze for Waste and Bottlenecks
Look for the classic Lean wastes:
- Overproduction
- Waiting
- Transportation
- Over-processing
- Excess inventory
- Unnecessary motion
- Defects
- Underused talent
Then check for variation, disconnected priorities, and mismatches between what customers demand and what the process can actually deliver.
5. Design the Future State
Good future-state design targets smoother flow, fewer handoffs, and clearer ownership.
A multi-site manufacturer, for example, might replace siloed scheduling at each plant with a shared production signal. That signal triggers replenishment from actual demand rather than forecasts and cuts queue time between sites.
Prioritize changes by customer value and organizational feasibility, not by which fix is easiest to talk about in a meeting.
Turning a Value Stream Map Into Measurable Improvement
A value stream map is the evidence base for improvement, not the improvement itself. Without a translation step, most maps end up laminated on a wall and forgotten within a quarter.
Build a Prioritized Implementation Plan
Convert findings into a roadmap with:
- Named owners for each initiative
- Milestones and dependencies
- Required resources and decision points
- A clear distinction between quick experiments and structural changes
Quick experiments, like adjusting a scheduling rule or piloting a visual signal, can run in days. Structural changes, such as new standard work, layout redesign, staffing shifts, or supplier coordination, take longer and need more formal governance.
Measure What Connects to Customer Outcomes
Track indicators that link operational performance to what customers actually experience:
- Lead time and process time
- First-pass quality
- Delivery reliability
- Backlog, inventory, and cost
- Customer or patient experience
A Verified Example: What Focused Implementation Looks Like
Carlyle Johnson Machine Company, a specialty manufacturer in Bolton, Connecticut, used a current-state value stream map with shop-floor employees to examine its returned-material process. The baseline was rough: a 43-day lead time, 11.8 hours of processing time, and just 10% first-pass yield.
After mapping root causes and building a future-state plan with visual management and streamlined documentation, results moved fast. The NIST Manufacturing Extension Partnership reported lead time falling to five days, processing time dropping to 3.4 hours, and first-pass yield rising to 90%. The company also reported $100,000 in cost savings and $2 million in increased or retained sales.
That result came from disciplined follow-through, not the map alone.
Build a Sustainment System
Improvement fades without routines that keep it visible:
- Daily management huddles tied to real performance data
- Visual boards reviewed on a set cadence
- Standard-work audits
- An escalation path when performance slips
- Periodic value stream reviews to update the roadmap
Leading North Advisors supports this stage through practitioner-led Lean consulting and its True North Delivery® approach, which integrates change management into implementation rather than treating it as a separate afterthought. The goal is building internal capability that teams can sustain after the engagement ends.
Common Value Stream Mapping Mistakes
Even well-intentioned mapping efforts fail in predictable ways.
Scoping too broadly or too vaguely. Before the workshop, nail down the product or service family, the start and end points, the customer, and the problem statement. Without that clarity, teams spend the session arguing about scope instead of mapping flow.
Mapping from assumptions instead of observation. A map built entirely in a conference room reflects what people believe happens, not what actually happens. Build it from direct observation, stakeholder interviews, and validation against real operational data.
Treating the exercise as one-and-done. A current state evolves. Products change, demand shifts, and technology gets updated. Maps need periodic revisiting, not a single workshop followed by silence.
Other frequent missteps:
- Teams chase visible waste and overlook information flow
- Mapping sessions leave out frontline employees who know the work
- Too many initiatives launch at once instead of a clear priority stack
- Several value streams get mapped together, which dilutes focus
Treating Lean as headcount reduction. Lean improvement is not a synonym for cutting jobs. The point is better flow, quality, capacity, safety, and work experience, with any resulting change managed responsibly.
Choosing a Value Stream Consulting Partner
Not every consultant runs a value stream engagement the same way. A few criteria separate useful partners from ones that produce a nice-looking map and little else.
What to Evaluate
- Practical implementation experience, not just workshop facilitation
- Industry understanding relevant to your operating environment
- Facilitation skill for cross-functional groups with competing priorities
- Data-based analysis rather than opinion-driven conclusions
- Change-management capability to carry findings into execution
- A defined method for moving from map to measurable action
Questions Worth Asking
- How do you define scope before the workshop begins?
- Who needs to be in the room, and how do you handle resistance?
- What deliverables do we own after the engagement ends?
- How do you align leadership before committing resources?
- What does implementation support actually look like?
- How do you transfer knowledge so our team can run future events independently?
Watch for Dependency, Not Just Delivery
A strong engagement builds your team's capability through training, coaching, and standard work, so ownership transfers to your organization rather than staying with the consultant indefinitely.
Leading North Advisors works across manufacturing, healthcare, food and beverage, construction, automotive, and public-sector environments, and pairs value stream engagements with Lean training and certification that include real project application and expert coaching. If you're weighing a consulting engagement or a capability-building program, reach out at info@leadingnorthadvisors.com or +1 (888) 387-7839.
Frequently Asked Questions
What are value streams?
A value stream is the full end-to-end set of activities, decisions, information exchanges, and material or service movements that create a product or service. It covers everything required to deliver a specific outcome to a customer.
What is an example of a value stream?
In manufacturing, a customer order moving through planning, sourcing, production, quality checks, fulfillment, and delivery is a value stream. In healthcare, it is a patient moving from appointment scheduling through treatment and follow-up care.
What is value stream mapping?
Value stream mapping visually documents the current-state flow of a process, identifies waste and constraints along the way, and supports the design of a more effective future state.
What does a value stream mapping consultant do?
A consultant sets the right scope, facilitates cross-functional observation and analysis, and helps design the future state. They also support implementation planning and build the client’s internal capability to sustain the work.
How often should a value stream map be updated?
Revisit a map whenever customer demand, products, technology, staffing, or process performance changes meaningfully. Beyond that, review it periodically as part of ongoing continuous improvement, not as a one-time project.
