Introduction
Ask five people in the same department how a process actually works, and you'll likely get five different answers.
Improvement teams often argue in circles about what's really happening on the floor, what the process should look like instead, and which fix matters most. That disagreement is expensive.
Current state and future state process maps solve this problem together. One documents the process as it truly operates, warts and all. The other defines a realistic target for what it should become.
This article breaks down how the two maps function, when to use each one, and how comparing them turns vague frustration into a prioritized improvement plan tied to real operational metrics.
Key Takeaways
- Current state maps capture reality, including every delay, rework loop, and workaround
- Future state maps define a practical target, not a wish list
- The gap between the two maps is your improvement roadmap, not just a diagram difference
- Direct observation and frontline input make maps credible; assumptions don't
- Today's future state becomes tomorrow's current state baseline
Current State vs Future State Process Mapping: Quick Comparison
Here's how the two mapping approaches differ across four key dimensions:
| Dimension | Current State | Future State |
|---|---|---|
| Purpose | Capture and validate the actual process before any changes are designed | Define how the process should operate after selected improvements |
| Starting point | Direct observation, interviews, records, process data, stakeholder input | Current-state findings, customer requirements, strategic goals, known constraints |
| Level of description | Every step, handoff, queue, decision, exception, and workaround | Streamlined flow, revised responsibilities, controls, and technology changes |
| Primary value | Shared baseline that exposes bottlenecks and hidden work | Aligned target that supports implementation planning |
The gap between these two maps is the improvement work waiting to be prioritized, assigned, and measured. Skip the comparison step, and you end up with two diagrams and no action plan.
What Is Current State Process Mapping?
Current state process mapping is the visual documentation of how a process actually operates right now, not how a policy manual or org chart claims it should work. That distinction matters more than it sounds.
Standard operating procedures describe intent. Current state maps describe reality, including every deviation from that intent.
For operational excellence work, the map creates a shared fact base. Without it, teams argue about symptoms instead of causes: non-value-added activity, excess lead time, quality escapes, resource bottlenecks, and cross-functional friction that never appears in a process manual.
What to Capture for Each Step
A credible current state map documents, for every step in the process:
- Owner and the systems used to perform the work
- Input, output, cycle time, and wait time
- Decision criteria and any exception paths
- Handoffs, rework loops, and workarounds
- Downstream or customer impact
Building a Map People Actually Trust
The most reliable maps come from direct observation, not conference-room guesswork. That means:
- Process walks and gemba observation — watching the work happen, not describing it from memory
- Interviews with frontline employees and leaders, since each group sees different failure points
- Document review of existing procedures, compared against what's actually happening
- Performance data analysis to validate what observation and interviews reveal
The Lean Enterprise Institute defines Value Stream Mapping as diagramming every step from order to delivery—value-creating and non-value-creating alike. ASQ's guidance on Value Stream Mapping recommends a facility-level map first, then process- or extended-level views, so teams don't optimize one area at the expense of the system.
Not every situation needs the same notation:
| Format | Best For |
|---|---|
| Value Stream Mapping | End-to-end material/information flow, lead time, inventory, Lean waste |
| Swimlane diagrams | Departmental handoffs and ownership clarity |
| Flowcharts, SIPOC, BPMN | Sequential steps, high-level boundaries, or formal process notation |
Use Cases of Current State Mapping
Once the format fits the problem, the same discipline shows up across industries:
- Manufacturing — order fulfillment, scheduling, changeovers, and inspection to expose wait time and handoffs missing from standard reports
- Healthcare and public sector — patient, citizen, or case workflows that hide queueing and rework inside approval chains
- Other service operations — any cross-functional flow where workarounds have replaced the documented path

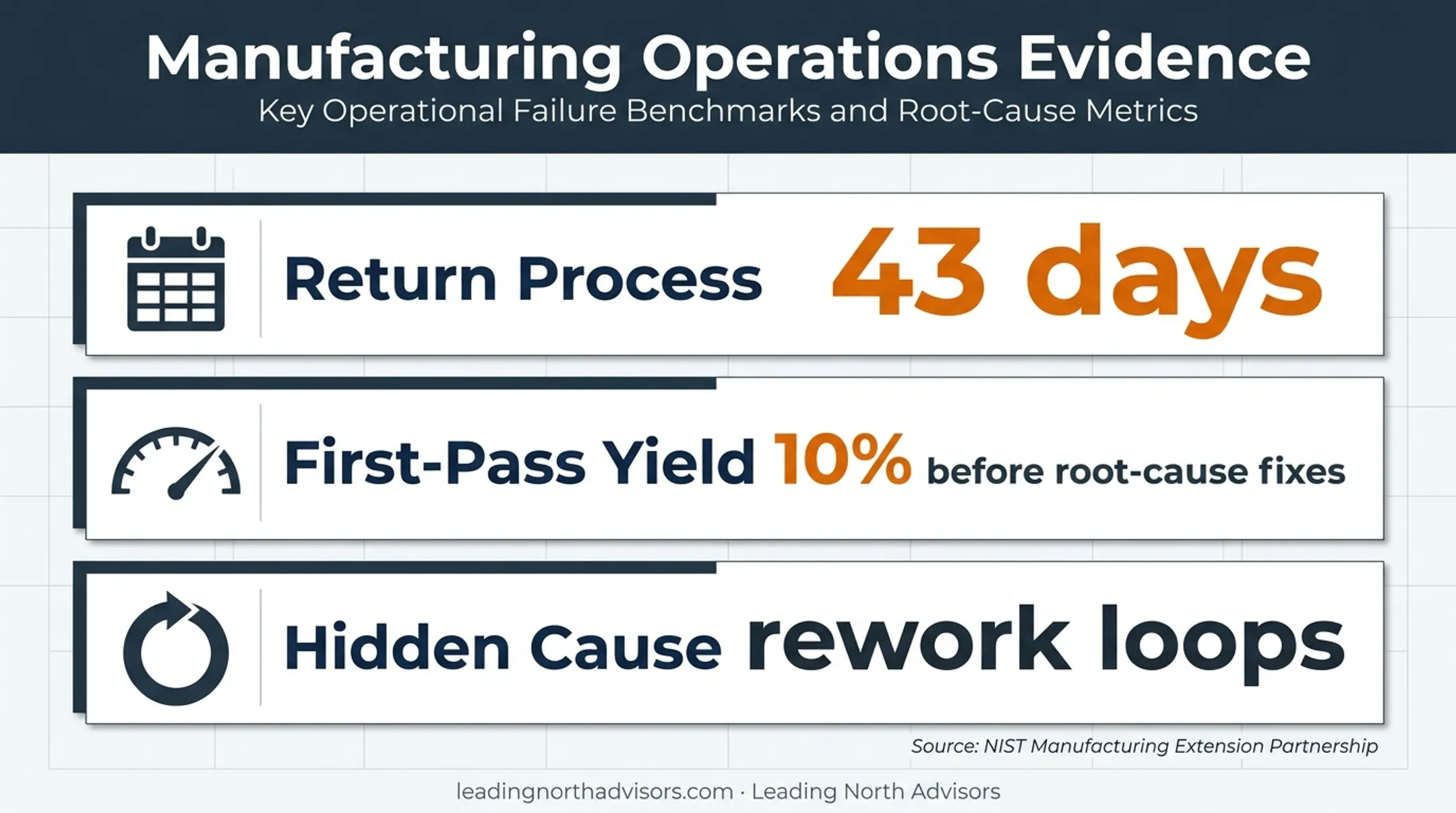

A clear example: a small manufacturer's return-merchandise process had stretched to 43 days, far beyond what leadership assumed. A current-state value stream map from NIST's Manufacturing Extension Partnership traced the real flow and uncovered rework loops nobody had flagged. First-pass yield sat at just 10% before the team fixed root causes.
That is the kind of gap standard documentation never shows—policy describes the process nobody is actually running.
What Is Future State Process Mapping?
Future state process mapping designs how a process should operate after improvement. It connects directly to customer value, strategic objectives, quality requirements, and operational performance.
The common mistake is treating the future state as an idealized fantasy diagram. It must remove meaningful waste and still fit the project's timeline, budget, and workforce—or it becomes a poster on the wall.
Design Questions Worth Asking
When designing the target process, ask:
- Which steps can be eliminated entirely?
- Which can be combined, standardized, or simplified?
- Can any step move upstream or run in parallel with another?
- Where does automation genuinely help, versus just adding complexity?
- Can quality be controlled at the source instead of inspected after the fact?
Representing the Change
A future state map typically shows revised decision points, fewer handoffs, improved flow or pull, updated roles, and new information flows. According to LEI's guidance on Value Stream Mapping fundamentals, the future-state map functions as both a vision of the improved value stream and the basis for a concrete implementation plan, not just a conceptual target.
That last part is critical. Attach baseline and target measures to the map—lead time, cycle time, first-pass yield, defect rate, backlog, or cost.
At Leading North Advisors, future-state design is tied to the organization's strategic objectives so the target process moves the business where it needs to go, not just toward a cleaner diagram.
Use Cases of Future State Mapping
Those same design choices show up differently by industry:
- Multi-site manufacturers standardize a core process across plants while allowing real local constraints (labor rules, equipment)
- Healthcare, food and beverage, construction, and public-sector teams coordinate changes across process, technology, roles, and facilities at once—fixing one in isolation rarely sticks
Two horizons are usually worth mapping separately:
- Near-term future state — achievable with limited investment, often within 60-90 days
- Longer-term vision — requiring larger technology, capital, or organizational change
Current State vs Future State: What Is Better?
This is the wrong question. Current state mapping is better for diagnosis and alignment. Future state mapping is better for direction and execution. They're not competing tools.
When to Use Each
Choose a current state mapping exercise when:
- The process is poorly understood or documented
- Departments disagree about how work actually happens
- Performance problems keep recurring without a clear cause
- Leadership needs a reliable, evidence-based baseline
Prioritize future state design when:
- The baseline is already validated
- You need a target operating model or improvement backlog
- Leadership needs a business case for implementation sequencing

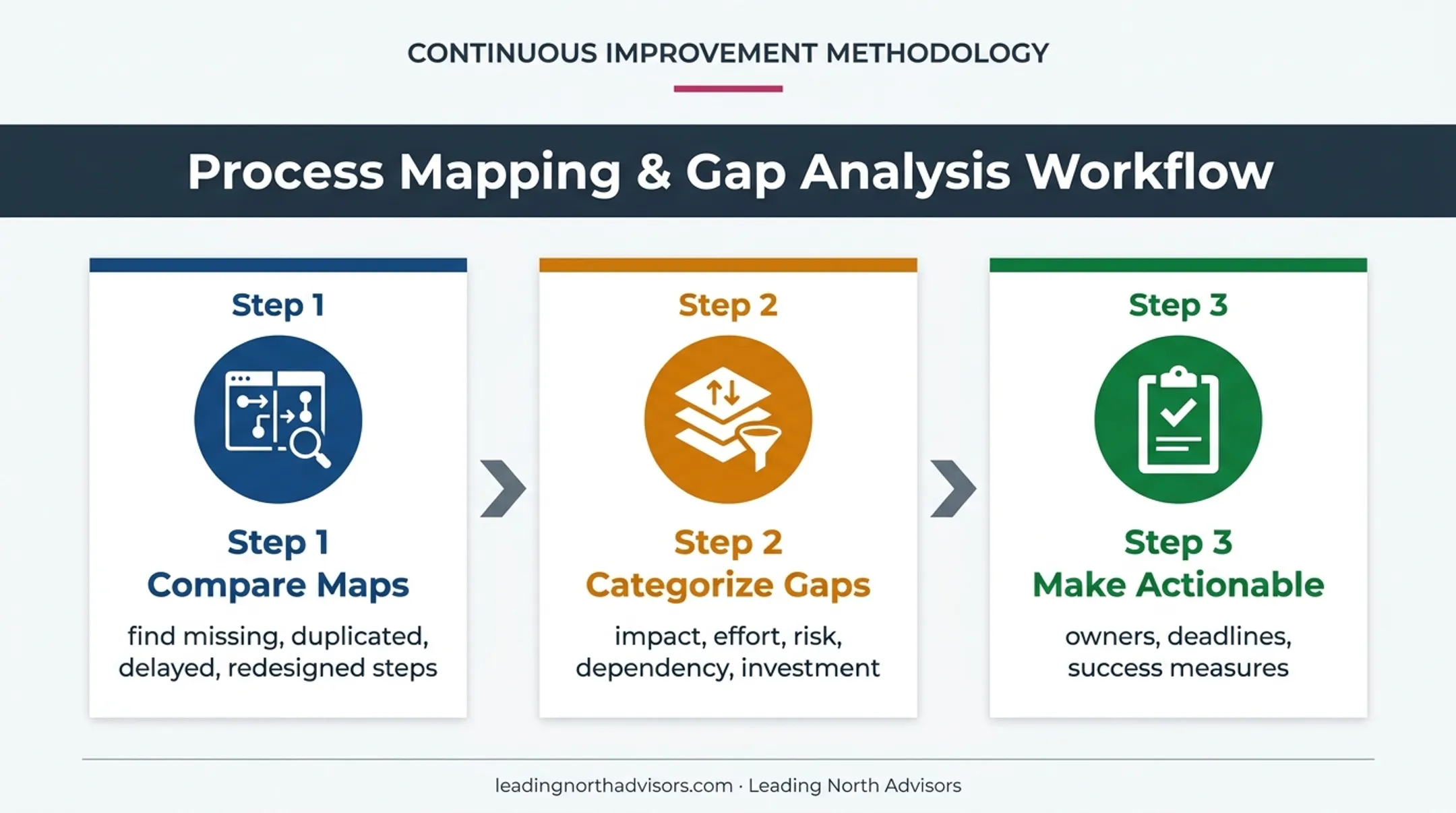

The Gap-Analysis Method
Once both maps exist, use them together to drive decisions:
- Place the maps side by side and identify missing, duplicated, delayed, or redesigned steps
- Categorize each gap by impact, effort, risk, dependency, and required investment
- Assign owners, deadlines, and success measures so each gap becomes an actionable item, not just an observation
Common Failure Modes
These five mistakes show up repeatedly:
- Mapping the intended process instead of the real one
- Designing the future state without frontline input
- Skipping time and quality data in favor of gut instinct
- Treating technology as the only lever for improvement
- Launching changes with no transition plan for the people affected
Some of these failures are well documented. Peer-reviewed research on Value Stream Mapping notes that incorrect application can create assessment mistakes and undermine the improvements teams are chasing.
A map without a clear "what next" step, as IndustryWeek's coverage of VSM lessons puts it, serves no real purpose at all.
Experienced facilitation prevents those failure modes. Leading North Advisors runs practitioner-led mapping with change-management support through its True North Delivery® approach, keeping client teams engaged from workshop through implementation.
Real-World Examples and Implementation Guidance
Manufacturing example: A current state map on a production floor might reveal:
- Queues building up between stations
- Excess raw material inventory
- Frequent changeover delays
- Quality inspection cut off from the data that would prevent defects
The future state tackles the highest-impact gap first. Teams often start with changeover delay because it touches multiple downstream steps.
Healthcare/public-sector example: Mapping a patient intake or permit-approval workflow frequently reveals:
- Approval loops that bounce between departments
- Duplicate data entry across systems
- Unclear ownership when something goes wrong
The future state ties directly to service-access and processing-time goals—usually what leadership and the public care about most.

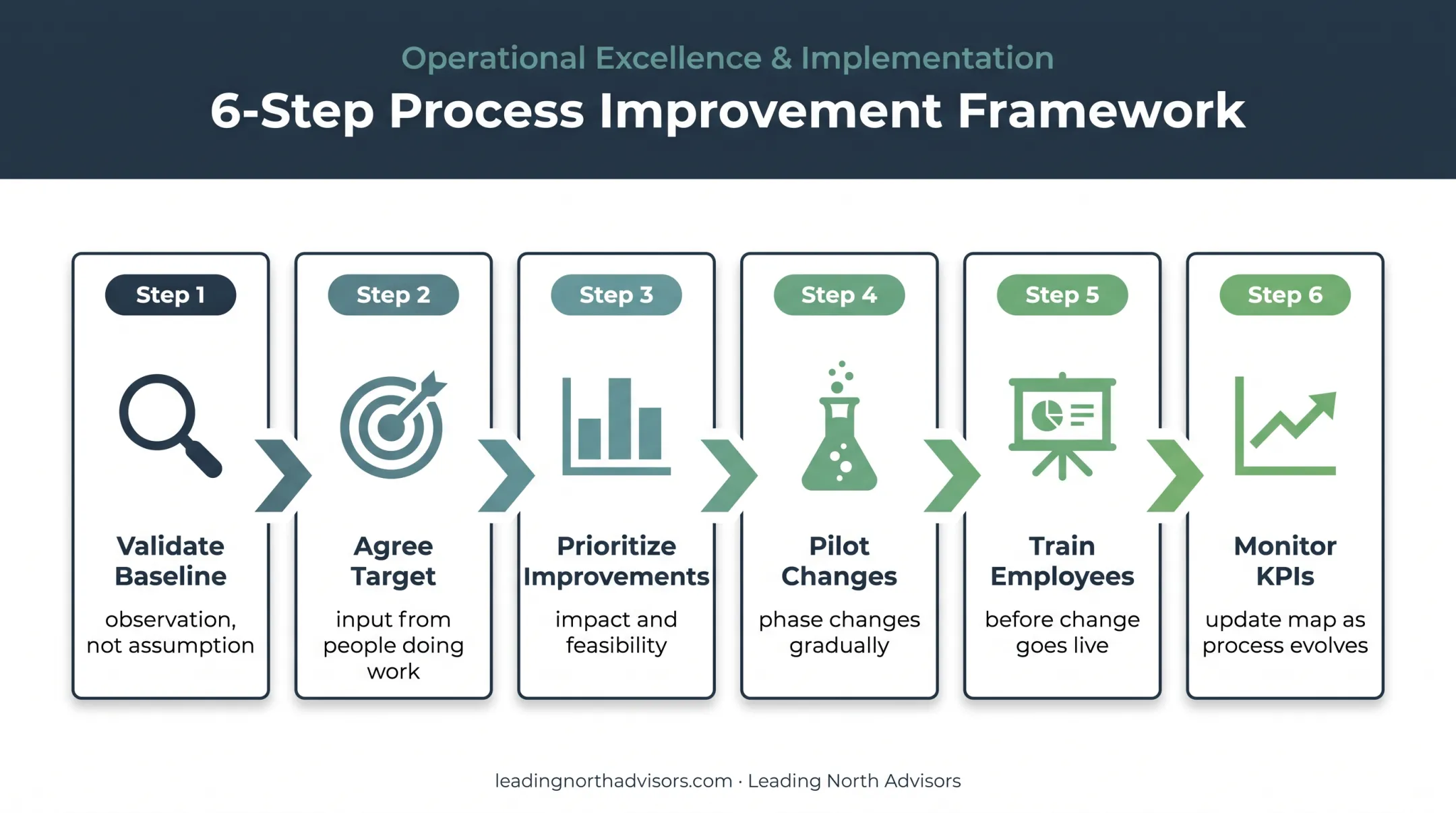

A Practical Implementation Sequence
Whether the process runs on a factory floor or through a hospital's admissions desk, the sequence holds:
- Validate the baseline through observation, not assumption
- Agree on the target with input from the people doing the work
- Prioritize improvements by impact and feasibility
- Pilot or phase changes rather than flipping the switch everywhere at once
- Train affected employees before, not after, the change goes live
- Monitor KPIs and update the map as the process evolves
That last step matters more than most teams admit. A future state map isn't a permanent document. It's a time-bound target that becomes the next current-state baseline once implemented.
If your organization has the process knowledge but lacks the internal facilitation bandwidth to run this cycle well, experienced Lean transformation support can close that gap. Leading North Advisors works with manufacturing, healthcare, construction, and public-sector teams to run this exact process against your specific goals.
Conclusion
Current state mapping explains where the process is right now and why performance is suffering. Future state mapping explains where the organization wants to go and what has to change to get there. Neither one, on its own, drives lasting improvement.
The strongest results come from treating both maps as one continuous improvement cycle. That cycle rests on direct observation, real process data, cross-functional participation, and clear ownership after the workshop ends.
Pick one map without the other, and you're either documenting problems you'll never fix or designing solutions for a process you never actually understood.
Frequently Asked Questions
Is VSM part of Lean Six Sigma?
Value Stream Mapping is primarily a Lean tool. Teams often use it inside Lean Six Sigma projects to set the process baseline, but it is not a Six Sigma statistical method.
What is a VSM in manufacturing?
A manufacturing Value Stream Map tracks material and information flow from supplier or customer order through production to final delivery. It records value-added and non-value-added time at each step.
What are some examples of process mapping?
Common formats include flowcharts for sequential steps, swimlane diagrams for departmental ownership, SIPOC for high-level boundaries, BPMN for formal notation, and current/future state Value Stream Maps for end-to-end flow and waste.
What are L1, L2, L3, and L4 processes?
These labels describe a process hierarchy: L1 for high-level value streams, L2 for major processes, and L3–L4 for detailed subprocesses and task-level work. Naming varies by organization, so confirm the model in use.
What is the difference between a current state map and a future state map?
A current state map shows how work actually happens today, based on observed evidence. A future state map defines the improved target process. The gap between them becomes your improvement roadmap.
How do you create a future state process map?
Validate the current state first, then define customer and business requirements. Design improvements against real constraints, involve stakeholders, and assign owners and deadlines for each implementation action.
