That's the entire point of Lean visual management.
Many operations teams struggle with information that exists but isn't visible where decisions actually get made. Work status lives in someone's inbox. Quality data sits in a system nobody checks until the weekly meeting. The result: slow reactions, repeated problems, and frontline teams who can't act without asking a supervisor first.
Lean visual management fixes this by putting standards, performance, workflow, and problems in plain sight, right at the point of work. This article walks through practical examples grouped by purpose, so you can choose visuals that fit your actual process instead of copying someone else's board.
Key Takeaways
- Effective visuals show current condition, expected standard, and required response at a glance
- Practical toolkit: 5S labels, Kanban boards, Andon signals, standard work displays, KPI boards, and improvement trackers
- Choose each visual by problem, audience, update frequency, and the action it must trigger
- Boards create value only when data stays accurate, gets reviewed routinely, and ties to accountability
What Is Lean Visual Management and Why Does It Matter?
The Lean Enterprise Institute defines visual management as placing tools, parts, activities, and performance indicators in plain view so anyone involved can understand system status at a glance. No digging. No interpretation required.
This directly supports core Lean principles: specifying value, creating flow, enabling pull, and pursuing continuous improvement. A visual system built around your value stream makes the gap between current and standard condition impossible to miss.
The Test for Every Visual
Here's where a lot of well-intentioned boards go wrong. They become decoration.
A whiteboard with last quarter's numbers, never updated, ignored during huddles, isn't visual management. It's wallpaper.
Every legitimate visual should answer one of these questions:
- Are we on standard?
- Is work flowing?
- What is abnormal right now?
- Who is responding, and what are they doing about it?
If a display can't answer one of these, it's not doing its job.
Types of Lean Visual Management Examples
Visual tools generally fall into three practical buckets: visuals that organize the workplace, visuals that show workflow status, and visuals that expose performance gaps. The labels aren't universal, but they match how most Lean organizations structure their visual systems.
Workplace and Process Visuals
These make the "normal" condition obvious, so anything abnormal jumps out immediately.
The Lean Enterprise Institute frames 5S as workplace practices designed to create a self-explaining, self-ordering, self-improving visual workplace. Shadow boards, floor markings, location labels, and color coding belong here. They're implementation tools within 5S, not a separate step.
Manufacturing example: A shadow board outlines every tool's exact position. If a torque wrench is missing, the empty outline tells you instantly—no inventory check required. Marked material locations work the same way: a bin sitting outside its taped floor zone signals a problem before it becomes a production delay.
This extends well beyond factory floors:
- Healthcare: Color-coded supply bins and labeled crash carts speed up response during time-sensitive procedures
- Food and beverage: Marked allergen zones and sanitation checkpoints support inspection routines
- Construction: Tagged equipment and marked staging areas reduce time lost searching for materials
- Public sector: Standardized intake stations help staff follow consistent service steps regardless of who's on shift
Standard work instructions belong here too. They document current best practice, reduce variation, and give teams a baseline for spotting drift.
Workflow and Status Visuals
Kanban boards, production tracking boards, and patient-flow boards show work moving through defined stages while exposing queues, bottlenecks, and excess work-in-progress.
The Lean Enterprise Institute describes kanban as a signaling device that authorizes and instructs production or withdrawal within a pull system. Production kanban tells an upstream process what to make; withdrawal kanban authorizes moving it downstream. Together, they create pull instead of push.
For any workflow board, define upfront:
- Columns — stages such as queued, in progress, blocked, and done
- Cards — a job, patient, work order, or project task
- Colors or icons — overdue items, quality holds, priority escalations
- Ownership and escalation — who owns each column, and what triggers action when items sit too long
Knowledge-work teams benefit from the same logic. A shared Kanban board with enforced work-in-progress limits per stage keeps projects from silently piling up. Weekly workflow reviews catch bottlenecks before they compound.
Physical vs. digital: Physical boards work well for team huddles in a single location: everyone gathers, sees the same board, and talks through it. Digital boards make more sense for multi-site operations, remote stakeholders, or data that updates automatically from a system rather than by hand.
Performance and Problem-Solving Visuals
This category catches gaps against targets: Andon lights, escalation boards, KPI trend displays, defect boards, Kamishibai audit boards, and Kaizen tracking boards.
The Lean Enterprise Institute describes Andon as a tool showing operating status at a glance, flagging machine downtime, quality problems, tooling faults, or material shortages. A sensor or pull cord triggers a response, often a controlled stop so defects don't get passed downstream.
Kamishibai boards serve a related but distinct purpose: they schedule leader audits, show whether checks happened, and record abnormalities with countermeasures attached.
What belongs on a strong performance board:
- A small set of relevant measures (safety, quality, delivery, cost, people)
- The target or normal condition
- Current status against that target
- The owner responsible for the metric
- The next action, not just the problem
From Signal to Resolution: A Short Example

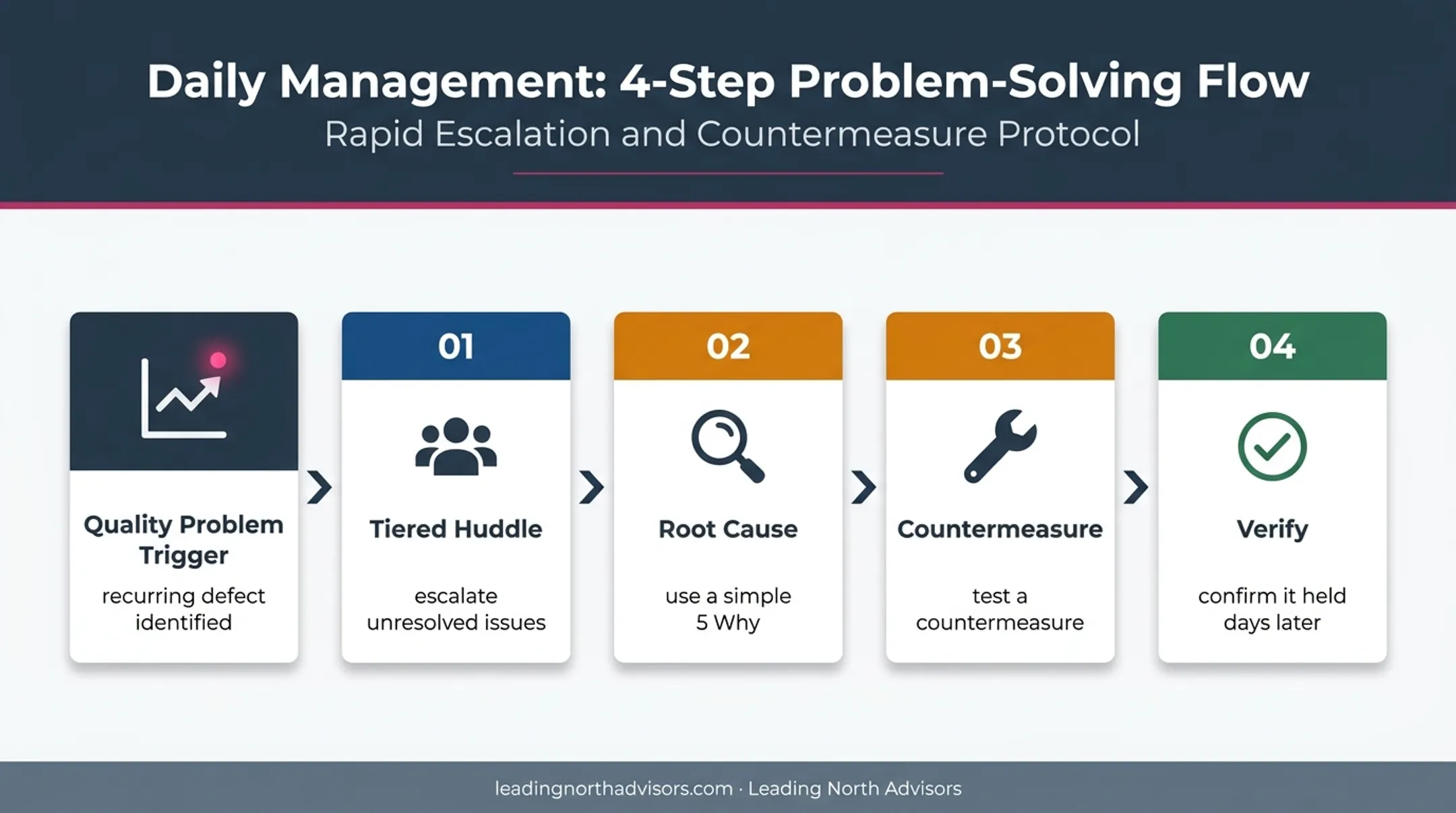

A quality inspector spots a defect trend on the floor display. From there, the response follows a short chain:
- Trigger a tiered huddle at the line level; escalate if the team can't resolve it alone
- Run root-cause analysis, often a simple 5 Why
- Test a countermeasure
- Verify days later that it held
Cleveland Clinic used a version of this with Tiered Daily Huddles, restructuring meetings to typically run 5 to 15 people with connected escalation across levels. The reported result was more open discussion of problems and better visibility into issues that used to stay buried—a structural change that surfaced problems faster.
That same pattern sits at the center of Managing for Daily Improvement: visual boards, daily huddles, structured problem solving, and standard work work as four interlocking parts. Drop one, and the system weakens.
How to Choose the Right Type of Lean Visual Management
The right visual depends on the operational problem and the behavior you want, not on which tool looks most sophisticated.
Factors to Consider
Purpose and goal. Decide first whether you need to organize a workplace, communicate standard work, control workflow, show performance, or track improvement actions. A KPI dashboard won't fix a missing-tool problem, and a shadow board won't fix a scheduling bottleneck. Users and location. Frontline operators need different information than executives reviewing site performance. A patient-flow board designed for nurses won't serve a hospital board meeting, and vice versa. Update frequency and data reliability. Match the tool to the data:
| Data Type | Best Visual Approach |
|---|---|
| Stable, team-owned info | Manual whiteboard |
| High-frequency, multi-site data | Digital dashboard |
| System-generated metrics | Automated digital display |
| Daily huddle topics | Physical board with markers |
| Always define who updates the board and who verifies accuracy. An outdated board is worse than no board. It creates false confidence. | |
| Complexity and accessibility. Use plain language and consistent symbols. Don't rely on color alone; the W3C's accessibility guidance recommends pairing color with shape or text so the message still lands for colorblind viewers. Show only what's needed to make a decision. | |
| Scale and sustainability. Can this visual stay consistent across shifts and sites while still letting local teams adapt it to their actual work? Rigid, corporate-mandated boards often get ignored at the floor level. |
Test Before You Expand

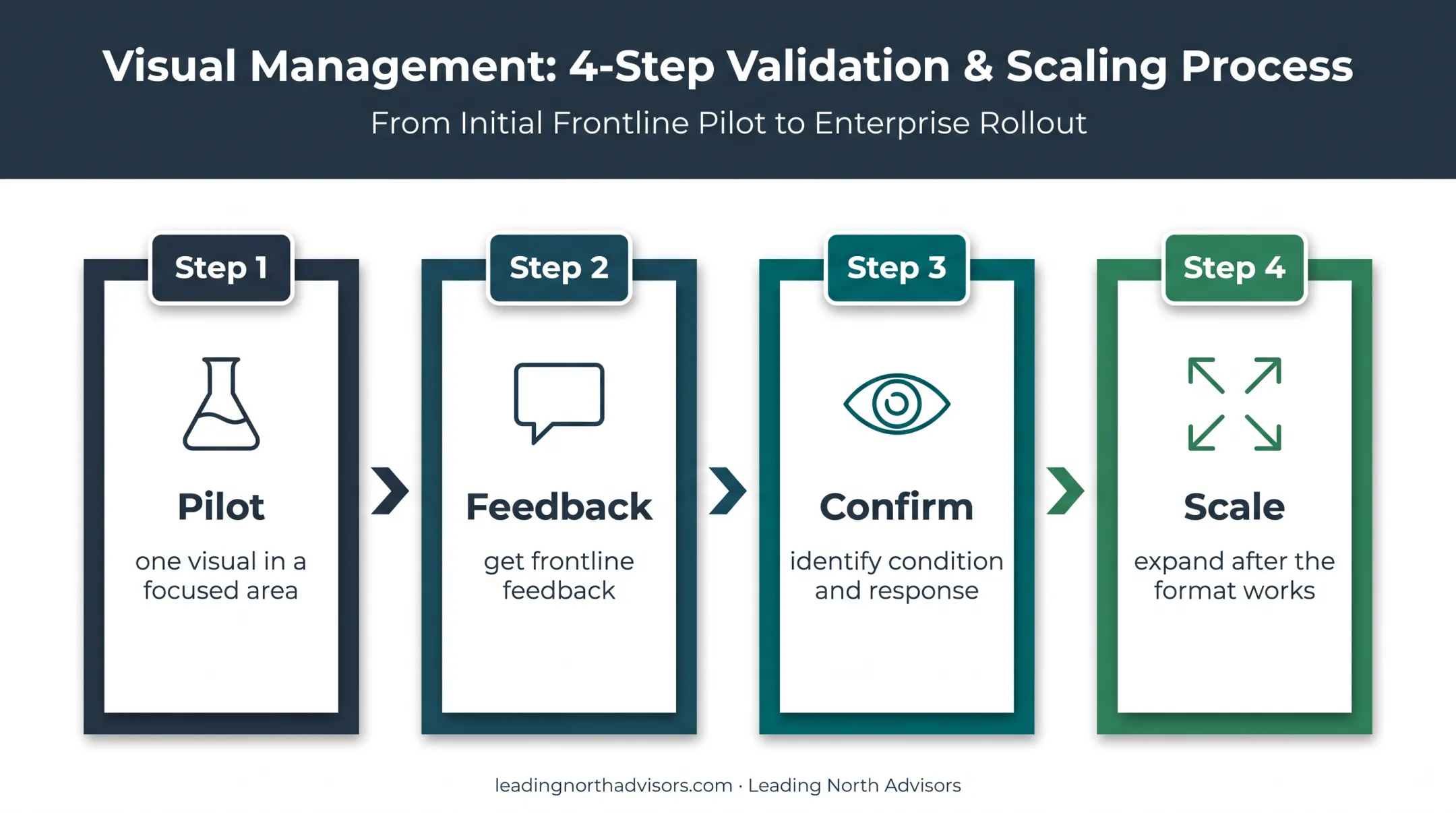

Pilot one visual in a focused area. Get frontline feedback. Confirm people can identify the current condition and the required response without explanation. Then scale. This is where many internal rollouts stall: teams jump straight to a multi-site dashboard without proving the format works for the people who use it daily. Leading North Advisors helps operations leaders design Managing for Daily Improvement systems that tie visual management, daily huddles, and structured problem solving together. The four-phase, 90-day rollout starts with a focused pilot rather than a company-wide mandate.
What to Check Before Finalizing a Visual Management Approach
Before you commit to a board or dashboard, run through these checks.
Don't overbuild. A large digital dashboard isn't automatically better than a simple label or floor marking. If a missing-tool problem can be solved with a shadow board outline, don't build a tracking system for it.
Confirm every visual has:
- A defined standard or target
- A named owner
- A set update cadence
- A routine review (ideally tied to a daily huddle)
- A clear escalation path
- An expected action when conditions go abnormal
Remove anything outdated, duplicated, or never referenced in team discussions. A board nobody looks at is clutter, not visual management.

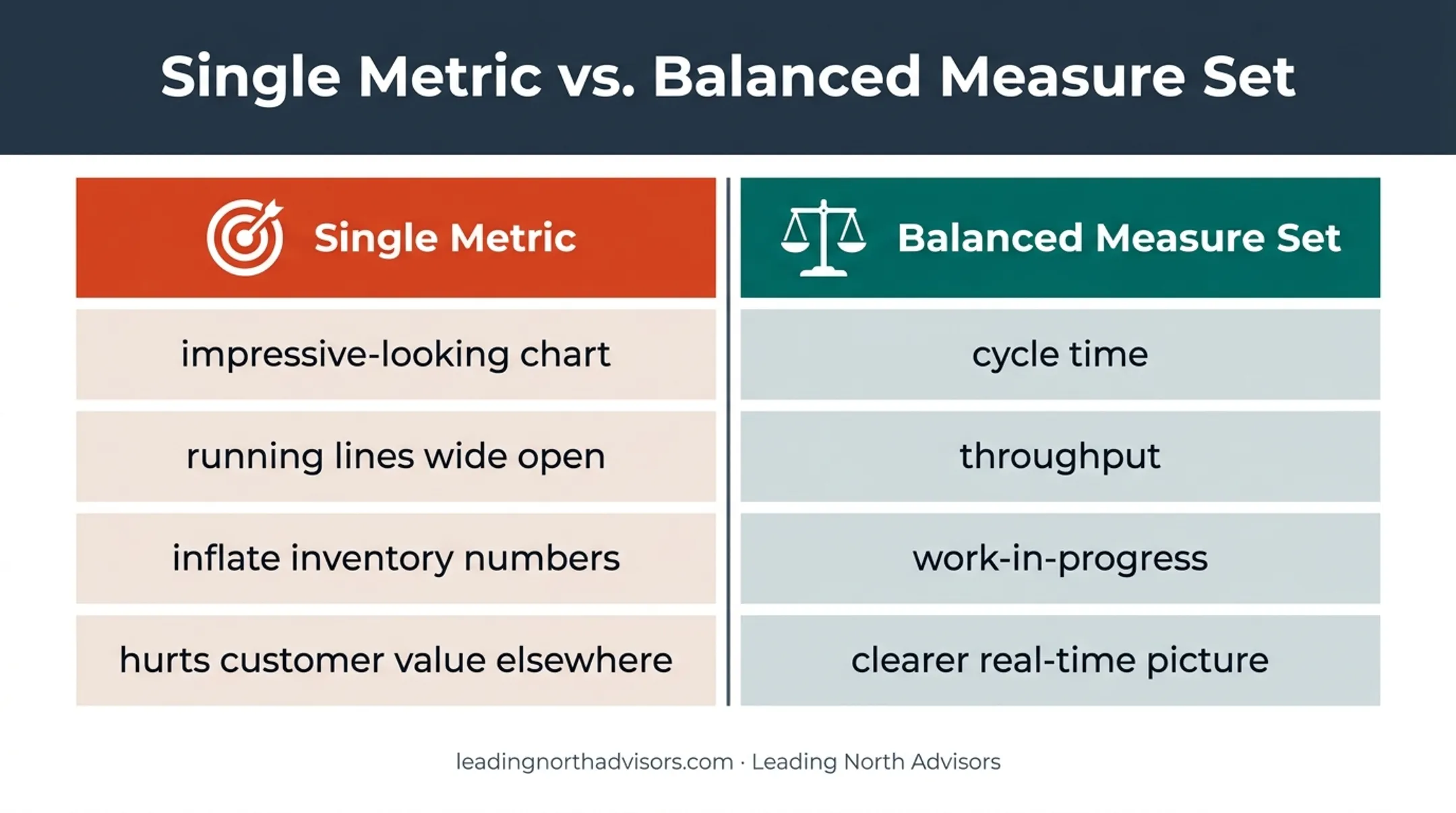

Watch for perverse incentives. The Lean Enterprise Institute warns that chasing a single metric, like running lines wide open to inflate inventory numbers, can look good on paper while hurting customer value elsewhere.
A balanced measure set matters more than a single impressive-looking chart. Check that your board doesn't reward speed at the expense of quality, safety, or flow.
For most teams, a simple dashboard tracking cycle time, throughput, and work-in-progress gives leadership a clearer real-time picture than a dozen scattered metrics.
Conclusion
Lean visual management examples span a wide range: simple workplace labels, workflow boards, performance displays, and real-time problem signals. None of them is inherently superior. The strongest systems share three traits: they make abnormalities visible immediately, they connect directly to daily huddles and problem-solving routines, and they evolve as the work itself changes.
Before adopting a new board or dashboard, evaluate the system built around it: ownership, cadence, escalation, and follow-through, not just how the display looks on the wall.
Frequently Asked Questions
What are the 5 principles of lean management?
The five principles are specifying value, identifying the value stream, creating flow, establishing pull, and pursuing perfection through continuous improvement. Visual management makes each of these principles visible and actionable in daily work.
What is the main purpose of visual management?
Visual management communicates current condition, standard, abnormality, and required response quickly enough that teams can act right at the point of work. It removes the need to search through reports or wait for a meeting to know what's happening.
What are the five types of visual management?
Classifications vary, but common categories include visual displays, visual controls, standard work or process-adherence visuals, performance visuals, and problem or escalation signals like Andon and huddle boards.
What are some good examples of visual management practices?
Common examples include 5S labels and floor markings, Kanban boards, Andon signals, standard work displays, KPI boards, Kamishibai audit boards, and Kaizen improvement boards.
What is a visual management board?
It's a physical or digital information hub showing team goals, current performance, abnormalities, owners, and follow-up actions. The best boards get referenced daily, not just posted and forgotten.
Is lean better than Six Sigma?
Neither is universally better. They solve different problems. Lean focuses on flow and waste reduction using visual controls and workplace organization; Six Sigma targets variation and defects through statistical analysis. The right choice depends on which problem you're actually facing.
